V-Type Chain Conveyor in Paper Production Line
Our company offers an advanced V-Type Chain Conveyor that serves as a critical component in the roll handling system of your paper making line. This paper manufacturing machine is designed to transport paper rolls smoothly and reliably from one stage to the next. The V-Type Chain Conveyor features a heavy-duty steel frame that can support heavy loads, making it ideal for busy paper production lines. The chain plate surface of this V-Type Chain Conveyor is installed flush with the floor, so paper rolls move in a straight, steady line without interruption. The V-shaped chain plate keeps the rolls aligned and prevents them from wandering off course. Our V-Type Chain Conveyor can operate in both forward and reverse directions, giving you greater flexibility in your paper mill layout.
The V-Type Chain Conveyor is made up of several main components, including the V-shaped chain plate, the conveyor chain, the tension end, the standard middle section, the drive end, and the drive unit. The entire assembly is installed in a pit below the floor, with the working surface of the V-shaped chain plate level with the ground. The conveyor chain moves in a continuous loop, while paper rolls travel in a straight line on the floor surface at a steady speed. The gear motor is directly connected to the main shaft of the drive end, making the structure compact. The chain tensioning mechanism is located at the tension end and uses a vertical underground tensioning method. Tensioning can be done directly from the floor level. The bearing housings on both the drive shaft and the driven shaft are equipped with grease lubrication devices, allowing grease to be added from floor level. The V-Type Chain Conveyor also includes photoelectric controls for start, stop, and interlocking functions.
Main technical parameters of Chain Conveyor:
| Parameter | Value |
|---|---|
| Line Body Total Width | 440 mm |
| Chain Plate Width | 250 mm |
| Chain Plate Material | 204 stainless steel |
| Chain Plate Thickness | 8 mm |
| Chain Plate Strip Width | 55 mm |
| Chain Plate V Angle | 170° |
| Conveyor Running Speed | 24 m/min |
| Drive Unit | Helical gear reducer |
| Frame Structure | Heavy-duty steel structure |
| Tensioning Method | Above-ground tensioning |
| Load Capacity | 3 tons per meter |
| Direction | Forward and reverse |
| Shaft Design | Through shaft |
| Access Cover | 8 mm thick for maintenance pit |
| Cover Support | Angle steel frame structure |
| Lubrication | Grease lubrication from floor level |
| Control | Photoelectric control for start, stop, and interlock |

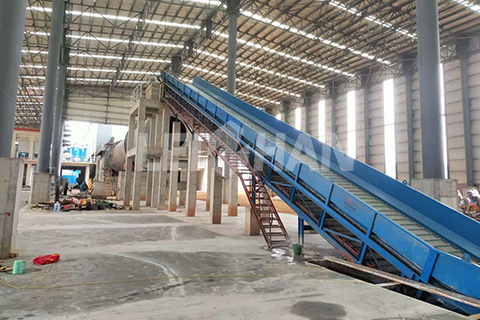

In addition to our V-Type Chain Conveyor, we can supply complete paper production lines for many other paper grades. We offer paper making lines for cultural paper, newsprint, writing paper, linerboard, corrugated paper, and specialty paper. Our range of paper mill machinery includes pulpers, refiners, screens, cleaners, headboxes, paper forming machines, press sections, drying sections, calenders, and reeling machines. We also provide turnkey paper production line services, handling everything from design to installation. Contact us to find out how our V-Type Chain Conveyor and other paper processing line equipment can improve your operation.
