Rewinder in Waste Paper Production Line

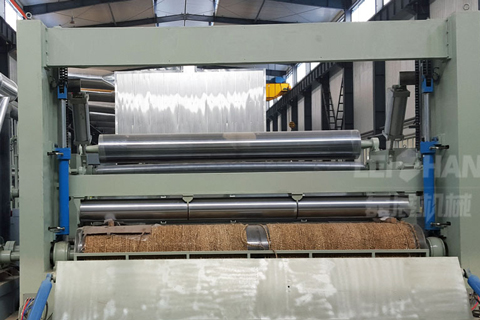

Our company offers a high-speed rewinder for paper mills. This rewinder is a shaftless, double bottom roll type. It has a modular design for easy operation and observation. The main drive units are directly on the floor to reduce vibration. The unwind, slitting, and rewind sections have separate foundations. The slitting section uses single motor drive and pneumatic positioning for quick size changes. The two bottom rolls have different masses to reduce resonance. This rewinder provides constant tension control, automatic slowdown, and automatic stop at set diameter or length. It also has automatic pressure control for the rider roll. These features make our rewinder reliable and efficient for your paper production line.
Key technical data of our rewinder:
| Item | Value |
|---|---|
| Working Speed | 1500 m/min |
| Maximum Unwind Roll Diameter | φ2500 mm |
| Maximum Finished Roll Width | 2500 mm |
| Maximum Finished Roll Diameter | 1500 mm |
| Paper Basis Weight | 120-200 g/m² |
| Maximum Slitting Count | Four rolls with five knives |
| Maximum Paper Web Tension | 2000 N/m |
This rewinder also has many safety devices. The rider roll has a locking device. The push roll device only works when the rider roll is up and the top tight device is out. The clutch must be disengaged before the paper roll can be pushed out. The unloading table must be down for crawling speed and up for normal speed. The electrical control system uses ABB880 drives, Siemens S7-1200 PLC, and PROFIBUS-DP communication. The main bearings are NSK and SKF. The reducer is from Guomao. The motor is from Huanian. The encoder is from Linde. The tension sensor is from ABB. We supply the hydraulic system, pneumatic system, electrical parts, and other parts. We also provide technical documents, training, installation guidance, and commissioning.
We offer this rewinder and other paper mill machinery. We supply complete paper production lines and turnkey paper production line services. If you need a reliable rewinder for your paper making machine, contact us for more information.
Email: leizhanworld@gmail.com
