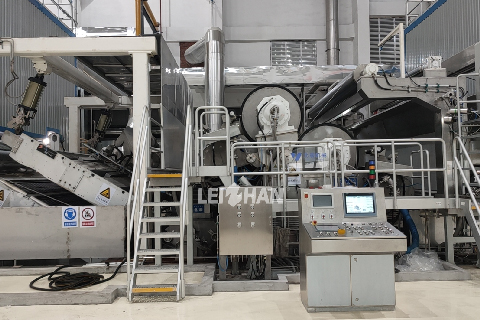

Paper Machine Spare Part Film Transfer Sizing Machine
Our company offers an advanced Film Transfer Sizing Machine designed to give your paper production line greater flexibility and efficiency. This paper making machine is a pre-metered roll type sizing device that forms a thin, uniform film of sizing liquid on the applicator roll before transferring it to the paper web. The Film Transfer Sizing Machine uses this film transfer method to apply a controlled amount of liquid to the paper surface, which results in less water absorption and less strength loss in the sheet. Because the paper web experiences less impact at the nip, the Film Transfer Sizing Machine helps reduce breaks and wrinkles, improving the overall runnability of your paper mill equipment. This Film Transfer Sizing Machine works well across a wide range of machine speeds, making it suitable for many different paper production setups.
Technical details of our Film Transfer Sizing Machine:
| Parameter | Value |
|---|---|
| Paper Types | High-strength corrugated paper, T paper |
| Base Paper Basis Weight | 90-150 g/m2 |
| Test Basis Weight | 110 g/m2 |
| Base Paper Moisture | 8% |
| Net Paper Width | 6600 mm |
| Reel Width | 6680 mm |
| Working Speed | 1200 m/min |
| Design Speed | 1250 m/min |
| Balance Speed | 1300 m/min |
| Crawling Speed | 25 m/min |
| Power Supply | 3×380/50 V/Hz |
| Control Voltage | 220/50 V/Hz |
| Control Voltage | 24 VDC |
| Compressed Air | 0.65 MPa |
| Clean Water | 0.35 MPa |
| Sizing Amount | 1.5-3.0 g/m2 per side |
| Solid Content | 8-18% |
| Machine Side | Right-hand or left-hand to be confirmed |
| Paint Color | Buyer to provide color standard |
Our Film Transfer Sizing Machine provides a wide range of benefits for your paper mill. It can handle both sizing and coating tasks, giving you production flexibility. The sizing liquid is applied as a film, so the sizing layer is even and easy to adjust. The Film Transfer Sizing Machine offers a broad range of sizing amounts with accurate metering. The sizing liquid properties remain stable during the process, and the results are not easily affected by changes in the base paper. With our Film Transfer Sizing Machine, the paper takes in less water, which means fewer paper breaks and wrinkles, lower energy use, and better output and quality. The lower water absorption also reduces the drying load in the after-dryer section, cutting energy costs significantly. Our Film Transfer Sizing Machine can also be used for coating, with coating amounts that suit different paper grades. This makes the Film Transfer Sizing Machine a highly flexible tool for your paper making line.
In addition to our Film Transfer Sizing Machine, we can supply complete paper production lines for many other paper grades. We offer paper making lines for cultural paper, newsprint, writing paper, linerboard, and specialty paper. Our range of paper mill machinery includes pulpers, refiners, screens, cleaners, headboxes, paper forming machines, press sections, drying sections, calenders, and reeling machines. We also provide turnkey paper production line services, handling everything from design to installation. Contact us to find out how our Film Transfer Sizing Machine and other paper processing line equipment can improve your operation.
