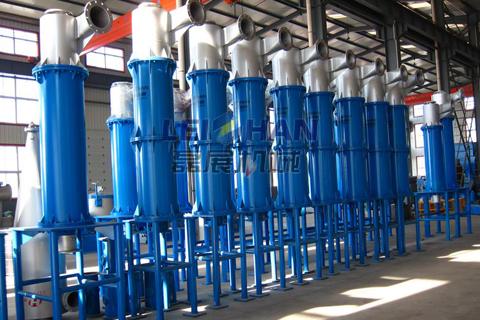

ZSC Series High Density Cleaner





Pulp cleaning equipment ZSC Series High Density Cleaner is mainly applied to remove all kinds of heavy impurities in paper pulp, like staples, stones, glasses, etc. in stock preparation system.

Application & Features

1. Volute Pulp inflow chamber, the eddy ability is strong and low pressure area subarea is obvious. This makes accepts and impurities separate thoroughly.
2. Wear resistance ceramics cone, long service life.
3. Specially designed long cone has small taper angle and fine cleaning efficiency.
4. Equipped with PLC control cabinet, convenient and easy to control, sufficiently discharging impurities.

Main Specification

Type ZSC2 ZSC3 ZSC4 ZSC5 ZSC6 ZSC7
Product capacity(t/d) 25-45 60-85 90-120 120-160 160-200 230-380
Concentration of input pulp(%)  2-5
Pressure of input pulp(Mpa) 0.15-0.35
Pressure of output pulp(Mpa) 0.1-0.25
Pressure of backwashwater(Mpa) Into a pulp pressure+0.02Mpa
Discharging mode hand/automation

Work Principle

The pulp slurry should first disposed by high concentration deslagging machine after breaking. And this machine is a kind of high concentration pulp purification deslagging equipment, which purifies pulp by separating the heavy impurities from the pulp according the difference on proportion of fiber and impurities.
